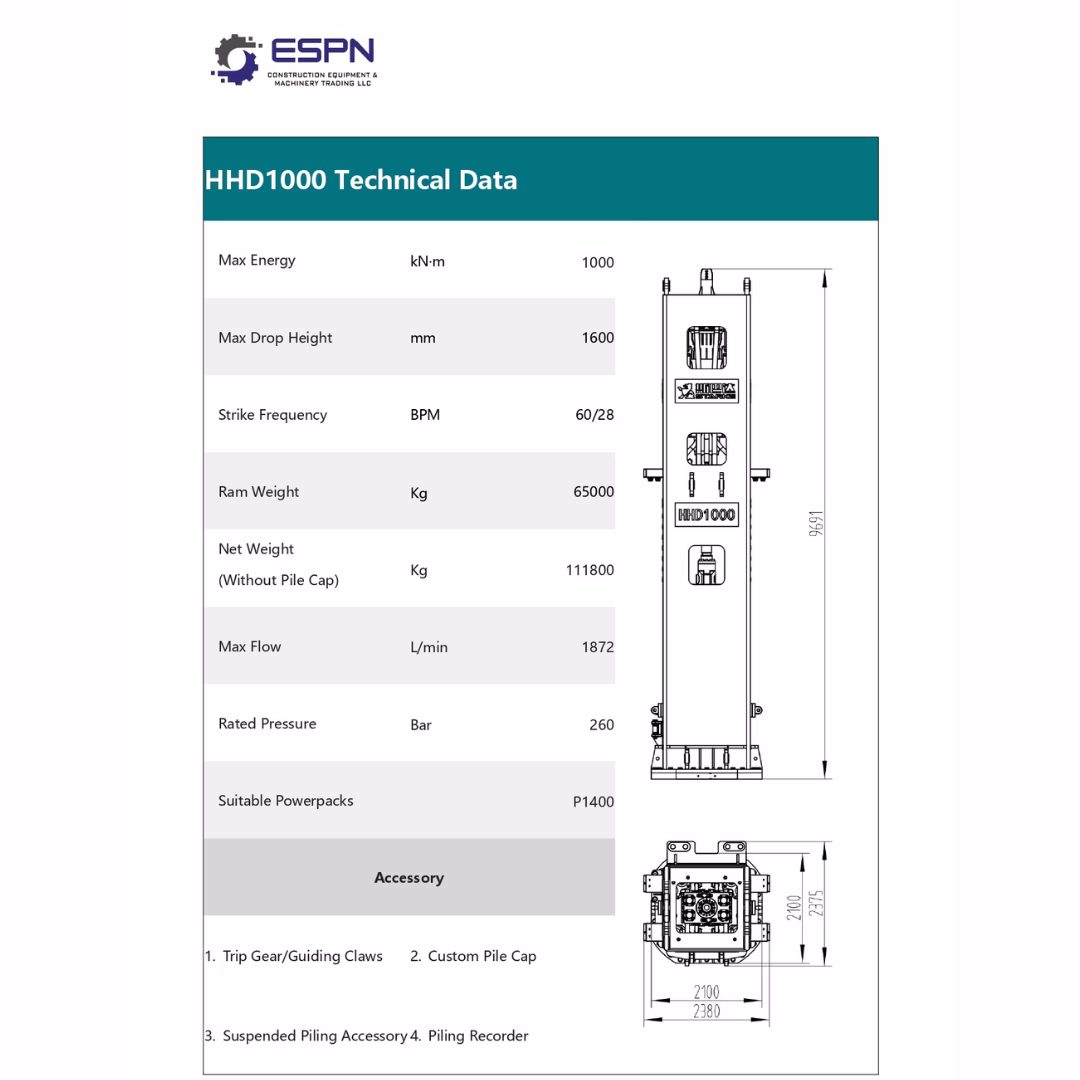

The HHD-1000 Impact Hammer is a high-performance hydraulic piling hammer designed for the most demanding heavy foundation applications. Built for large-scale marine construction, offshore projects, bridge foundations, port developments, and major infrastructure works, this hammer delivers the power, durability, and reliability required for professional pile driving in challenging environments.

With an impressive maximum energy of 1000 kN·m, the HHD-1000 provides exceptional striking force for driving large structural piles into difficult ground conditions. Its 65,000 kg ram weight generates powerful impact energy, while the 1600 mm maximum drop height helps ensure efficient force transfer during operation. This combination makes the HHD-1000 an ideal solution for contractors who require deep penetration capability and dependable hammer performance on critical foundation projects.

The hammer operates with a strike frequency of 60/28 BPM, allowing for controlled and efficient pile driving performance across a wide range of heavy-duty applications. With a net weight of 111,800 kg without pile cap, the HHD-1000 offers the structural stability and rugged construction needed for continuous high-impact work on demanding job sites.

Designed for strong hydraulic performance, the HHD-1000 requires up to 1872 L/min max flow and operates at a rated pressure of 260 bar. It is compatible with the P1400 powerpack, providing a reliable hydraulic setup for consistent field performance in large-scale piling operations.

o support different project requirements, the HHD-1000 can be equipped with useful accessories such as Trip Gear/Guiding Claws, Custom Pile Cap, Suspended Piling Accessory, and Piling Recorder. These options help improve pile guidance, job site adaptability, and performance monitoring for specialized piling applications.

Built for maximum durability, strong hydraulic efficiency, and high-energy performance, the HHD-1000 Impact Hammer is an excellent choice for contractors seeking a premium hydraulic impact hammer for heavy-duty and large-diameter piling operations.
